AIRBFTsuspension

AIR TANK

Product classification:

Product introduction:

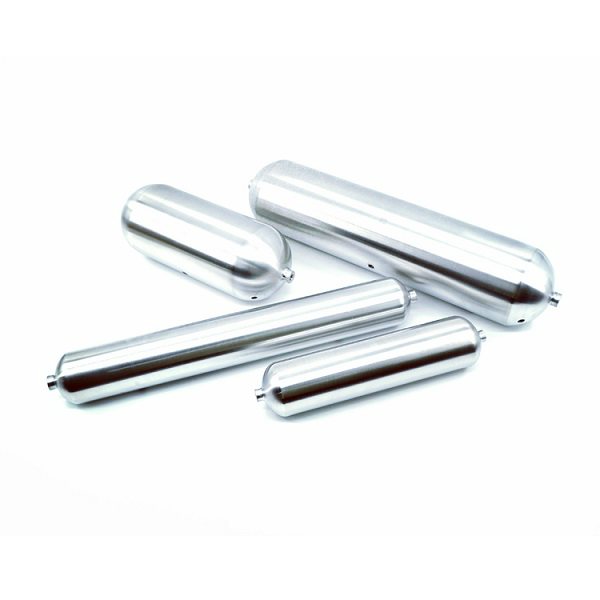

Airbft aluminum alloy gas tank, high-pressure explosion-proof, maximum pressure bearing pressure 1000PSI, four specifications and sizes are optional, integrated spinning technology, no welding process, surface polishing treatment, safer and more beautiful.

Aluminum alloy high pressure gas tank

Airbft aluminum alloy gas tank, high-pressure explosion-proof, maximum pressure bearing pressure 1000PSI, four specifications and sizes are optional, integrated spinning technology, no welding process, surface polishing treatment, safer and more beautiful.

AIR TANK

AIR TANK

AIR TANK 160x450L T3
Length:510mm
Width:210mm
Height:195mm
Net weight:3.2KG
Gross weight:4KG

AIR TANK 160x730L T5
Length:800mm
Width:210mm
Height:195mm
Net weight:4.61KG
Gross weight:5.5KG

AIR TANK 100x730L T3L
Length:800mm
Width:165mm
Height:165mm
Net weight:2.84KG
Gross weight:3.5KG

AIR TANK 100x450L T2
Length:510mm
Width:165mm
Height:165mm
Net weight:1.93KG
Gross weight:2.6KG

Material: aluminum alloy.
Process: no welding, spinning forming.
Pressure bearing: 200psi.
Blasting: 750psi.
Color: natural color of aluminum alloy.
Thread: G1 / 4
